Gigabit POE injector&splitter kit
Gigabit POE injector&splitter kit Gigabit POE injector&splitter kit Gigabit POE injector&splitter kit
Product name : Gigabit POE injector&splitter kit
Product No. : POEGSP-4812S
Price : Inquiry now
Length/Size : 21cm
Color : White
Conductor : Copper
Connector type : RJ45&POE
Connector color : Nickel plated
Shielding : shielded RJ45
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

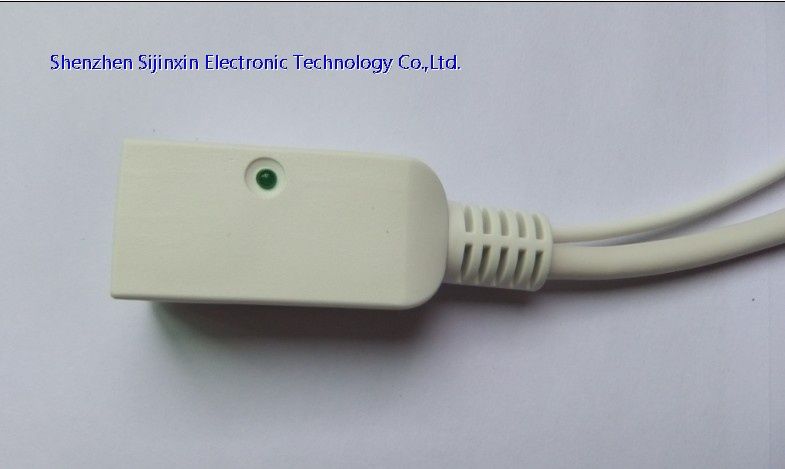

Passive Gigabit POE splitter&injector kit
Gigabit POE Model no: POEGSP-4812S
Non802.3 , IEEE802.3af/at compliant

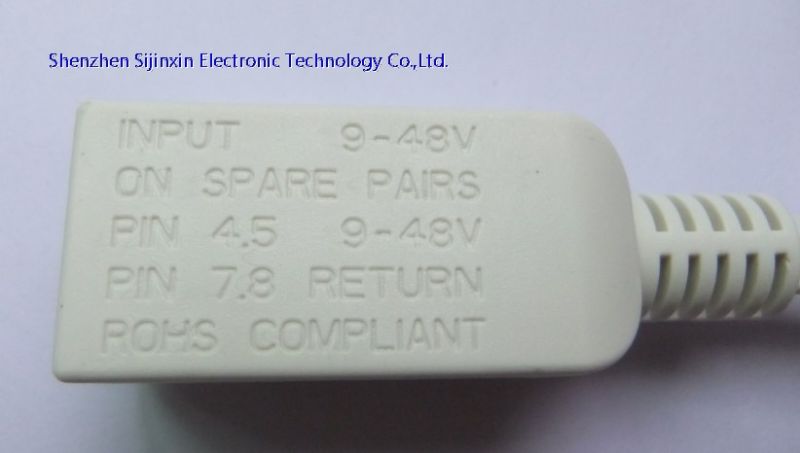

POE Pin: 4,5(+); 7,8(-)
OEM 2.1*5.5mm DC/ 2.5*5.5mm DC / 1.35*3.5mm DC available.
*High quality PCB design to give a more stable POE power delivery, with LED power indication for your working condition checking.
*Support BASE-100/1000T, 1000Mbps Gigabit ethernet requirements.
*Seperated data and current with compacitance protection, and grounded&shielded RJ45 plugs to acheive better resistance on EMI/RFI, sametime for much better communication on gigabit ethernet and avoid crosstalk , interruption etc  on data transfer.
*Support 9-56V output ,Max 2A for power over ethernet on PD, also comvinience for UPS power.
* With shielding and seprated compacitance protection, the voltage and current are delivered more stable, protect devices from static and inrush current damage. Reinforce the power over ethernet delivery distance to 80-100 meters. Advice customers to use Cat.5e and above patch cable for gigabit ethernet.
*Ideal with 48V/1A or others, for your POE switch networking, and wireless AP, Wireless transmitter,POE camare, VoIP phone etc.


Passive Gigabit POE splitter/ Gigabit POE injector Specifications:



Model



POEGSP-4812S



POE Input / Output Specifications



DC Input Voltage



9-48V ± 5 % max 56V



DC Output Voltage



9-48V ± 5 %



Max Output Current



2A Max.



Over Current Protection



None



POE General Sepcifications:



Operating Temperature



0oC ~ +45oC



Storage Temperature



-30oC ~ +70oC



CASE OF MATERIAL



PVC



Ethernet Date Rate



10/100/1000Mbps



Ethernet Cable



TIA/EIA 568 Cat.5



Humidity



Up to 90%



Weight



28g



DC Jacks



2.1x5.5mm



Length



210mm
